AIRCRAFTER T-250 Turntable

CobraTurn Digital Turntable

AIRCRAFTER T-250 Turntable


  • Model:            127-007

Price: $2695.00 AIRCRAFTER T-250 Turntable


Description

By popular request MK Products is proud to introduce the all new AIRCRAFTER T-250 Turntable. You wanted a detachable clutch to rotate the turntable freely. You got it. You wanted ultra-low speeds for those larger projects. You got it, how does 0.1 RPM sound? All this is combined with the durability and performance the AIRCRAFTER line of positioners has built its name on.

Note: AIRCRAFTER T-250™ Comes with 10” tabletop included.

Features

  • De-clutch mechanism for free spin.
  • Low speed 0.1 RPM
  • Closed frame design
  • Simple illuminated control panel, with digital display.
  • Linear single speed control knob, with center, push button start, stop or jog functions.
  • Gas ID purge through the center anodized shaft.
  • High frequency interference protection.
  • Simple push knob to adjust table angle.
  • Standard On/ Off foot switch provided, or an optional variable foot switch may be purchased.
  • Can be easily bolted to any flat surface.
  • Gas fitting accepts common gas hose used in the welding industry.
  • Grounding lug accepts common ground terminals.
  • Steel frame and control panel, powder coated grey.
  • Lightweight, anodized aluminum gear housing.
  • Heavy-duty steel cut gears.
  • Spring loaded tapered pin lock mechanism to adjust table angle.
  • 7 table angle locking positions from 0-90 degrees. Custom angle lock plates may be purchased.

Specifications

Balanced Load
Capacity
Turntable
Diameter
Degrees Tilt Speed Range R.P.M.
250 lb* 10" 0° ~ 90° 0.1 ~ 10
Ground Capacity AMPS Input Voltage Shipping Weight Transmission
400A 60% Duty Cycle 120VAC 50/60 Hz 38 lbs Gear

References

Product IMAGE
CobraTurn Digital Turntable

Accessories

Included

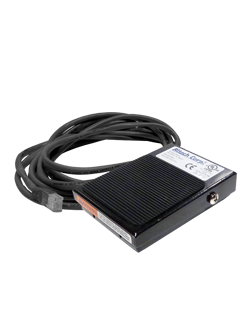

ON/OFF Foot Swith
005-0747 CobraTurn Turn Table On/Off Foot Switch 005-0747
Included

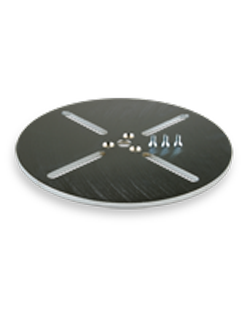

10 Inch Turntable
005-0677 CobraTurn Turn Table On/Off Foot Switch 005-0747
Optional

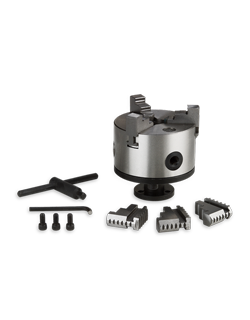

3 Jaw Chuck
005-0040 CobraTurn Turn Table On/Off Foot Switch 005-0747
Optional

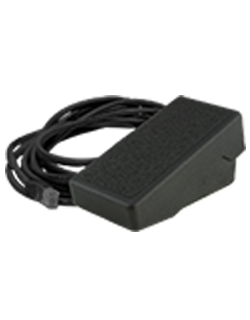

Variable Speed Foot Pedal
005-0746 CobraTurn Turn Table On/Off Foot Switch 005-0747
